SR012
Product Description
1. The BSA series collapsible solid sided stillage is composed of the front and rear upper and lower doors, left and right panels, and the bottom frame.
2. Its specially designed tapered feet make stacking safe, stable, and reliable.
3. This product effectively reduces logistics cost and improves handling efficiency, help meet JIT objectives.
4. It is widely used for the warehousing and distribution in the mechanical, electronic, automobile, and other industries.
Product Features
1. The specially-designed tapered feet are formed by stamping, which have large load-bearing capacity and ensure safe and smooth stacking.
2. Both the front and rear panels can be half opened, facilitating putting in and taking out goods.
3. The lower part of the front or rear panel is fixed by pin rods. It can be easily folded.
4. Formed by stamping, all iron panels have high strength. They are lightweight, thus reducing costs.
5. The continuous structure of the bottom enables the collapsible solid sided stillage to run automatically in the logistics transportation line while improving the load-bearing capacity.
6. The forklift slot limit ensures safe operation of the forklift.
7. The sheet used to cover the column is made by special tooling. It improves the strength of the column.
8. The left and right panels are connected to the bottom frame by the pin shaft, so they are flexible to fold.

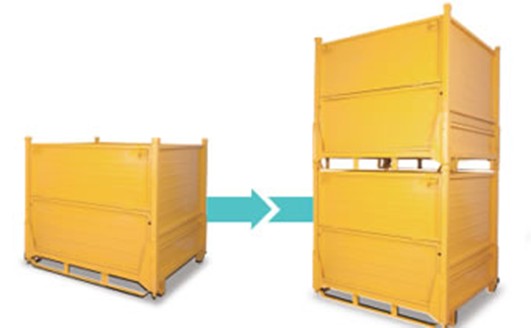

9. The product surface is sprayed with plastic powder and is beautiful and durable. 10. Three-dimensional storage can be realized by stacking the stillages with load.

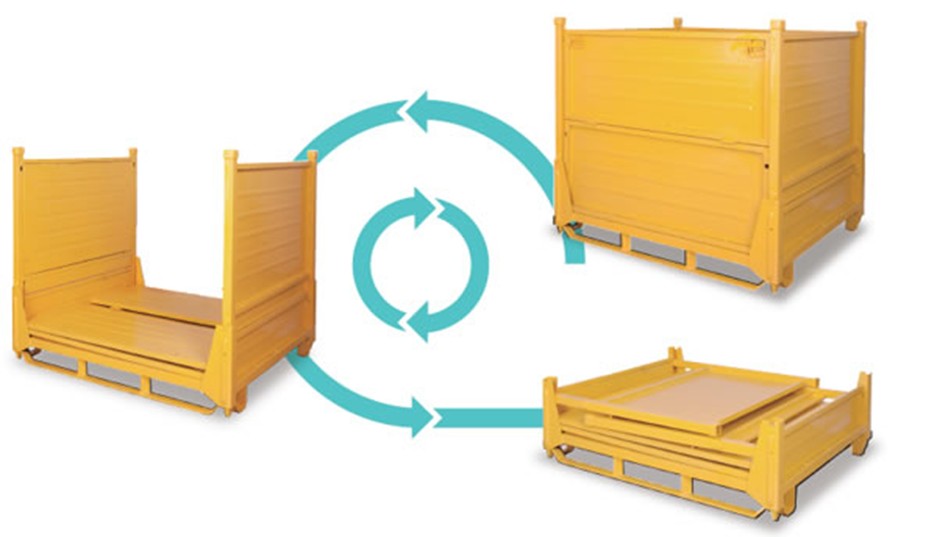

11. When at no load, the solid sided stillage can be folded and stacked to save space and reduce transport costs.
12. Storing workpieces in a fixed quantity, the foldable solid sided container makes inventory counting easy and convenient.
In addition to the above products, we can also provide customized products according to customer requirements.
| Collapsible Solid Sided Stillage |
| Model |
External dimensions |
Internal dimensions |
Load |
Surface treatment |
Packing quantity |
|
| |
W×D×H |
W×D×H |
(Kg) |
|
40GP |
20GP |
| SR012-1 |
1200×1000×1060 |
1120×920×870 |
1000 |
Powder coating |
132 |
60 |
| SR012-2 |
1200×800×760 |
1120×720×570 |
1000 |
Powder coating |
150 |
72 |
|
