WS005

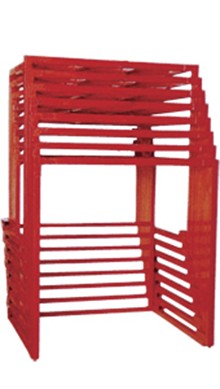

Inverted Stackable Storage Rack without Guideway
The inverted stackable storage rack without guideway is suitable for use in areas where using shelf is not suitable, such as leased warehouse, low and old-fashioned warehouse, workshop temporary storage area, etc. Used in conjunction with mechanical handling equipment, this product can be applied in all links of the logistics chain.
Structural Features
1. This inverted stackable storage rack without guideway is welded by square tubes. It has excellent load-bearing capacity and durability performance.
2. Due to unified specification, the quantity of the item that this product can hold is fixed. This makes it easy to count the inventory.
3. During use, multiple products can be piled up, forming three-dimensional storage.
4. When not in use, products can be nested easily, so not much space will be occupied.
5. Product with non-standard size can be customized as per customer needs.
| Model |
External dimensions |
Internal dimensions |
Cargo size |
Weight |
Load |
Stacking(layer) |
Surface treatment |
|
L×W×H(mm) |
L×W×H(mm) |
L×W×H(mm) |
(Kg) |
(Kg) |
|
|
| WS005-1 |
1300×1200×1200 |
1200×1150×1150 |
1100×1100×1050 |
45 |
1000 |
4 |
Powder coating |
| WS005-2 |
1300×1200×1400 |
1200×1150×1350 |
1100×1100×1250 |
47 |
1000 |
3 |
Powder coating |
| WS005-3 |
1400×1200×1200 |
1300×1150×1150 |
1200×1100×1050 |
46 |
1000 |
4 |
Powder coating |
| WS005-4 |
1400×1200×1400 |
1300×1150×1350 |
1200×1100×1250 |
48 |
1000 |
3 |
Powder coating |
| WS005-5 |
1500×1200×1200 |
1400×1150×1150 |
1300×1100×1050 |
47 |
1000 |
4 |
Powder coating |
| WS005-6 |
1500×1200×1400 |
1400×1150×1350 |
1300×1100×1250 |
49 |
1000 |
3 |
Powder coating |
| WS005-7 |
1600×1200×1200 |
1500×1150×1150 |
1400×1100×1050 |
48 |
1000 |
4 |
Powder coating |
| WS005-8 |
1600×1200×1400 |
1500×1150×1350 |
1400×1100×1250 |
50 |
1000 |
3 |
Powder coating |
|
