Name: WMC016
Spec:


   Details

WMC016 Straight Stacked Wire Mesh Container
Model Nominal size Outer size Inner size Mesh Wire diameter Weight Load Capacity Door opening mode Leg height Distance between legs Surface treatment Stacked layers Packing quantity
  W×D×H(mm) W×D×H(mm) W×D×H(mm) (mm) (mm) (kg) (kg) (m³)   (mm) W×L(mm)     40GP 20GP
WMC016-1 1000×800×840 1050×860×855 955×780×695 50×50 6.4 60 1500 0.54 Full open 100 880×595 Electro-galvanizing 4 240 120
WMC016-2 1000×800×840 1050×860×855 955×780×695 50×100 6.4 51 1000 0.54 Full open 100 880×595 Electro-galvanizing 4 240 120
WMC016-3 1200×1000×890 1250×1060×905 1155×980×745 50×50 6.4 77 1200 0.88 Full open 100 1080×795 Electro-galvanizing 4 200 100
WMC016-4 1200×1000×890 1250×1060×905 1155×980×745 50×100 6.4 67 1000 0.88 Full open 100 1080×795 Electro-galvanizing 4 200 100

Structural Features
1. Door opened in the front and rear, bottom mesh panel bent in the left and right
2. Folded inwards directly, without occupying external space
3. Directly stacked after folded at no load, more convenient and stable
Application Features
1. Strong and Durable
This straight stacked wire mesh container is formed by spot welding of strong steel bars. Its bottom is reinforced by the U-shaped groove and special supporting legs are adopted, making operation safer and faster.
2. Convenient to Use
The wire mesh storage cage can be easily folded and unfolded. It is safe and convenient to operate.
3. Rationalize Warehouse Management
Due to the unified specification, the storage cage makes inventory counting convenient.
4. Save Space

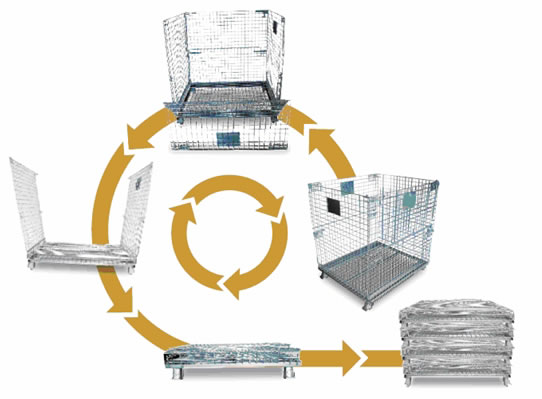

Forklift or hoist can be used to stack the warehouse cages as high as four layers, achieving three-dimensional storage. When not in use, this product can be folded and piled, and it only takes up 1/5 of the space it occupies when in use.
5. Diversified Use
Supporting the use of hoist, trolley, forklift, pallet truck, or other transport equipment, the straight stacked wire mesh container can be applied in the whole process from raw materials entering the factory to the finished products leaving the factory. It not only reduces the damage incurred in handling but also saves a lot of labor costs.
